Please call Trackman Support before starting to map new targets, as Support needs to go into the Relay page and enable GPS for all radars.
- Make sure you have the rover ready to go:
- Batteries ( 5 AA's)
- Antenna attached to it
- Press the power button and wait to get a green or a white light. The rover needs to be close to the AP's (access points) to connect to correct network.
Go to portal.trackmangolf.com and login to your facility management profile and select the Range site in question.

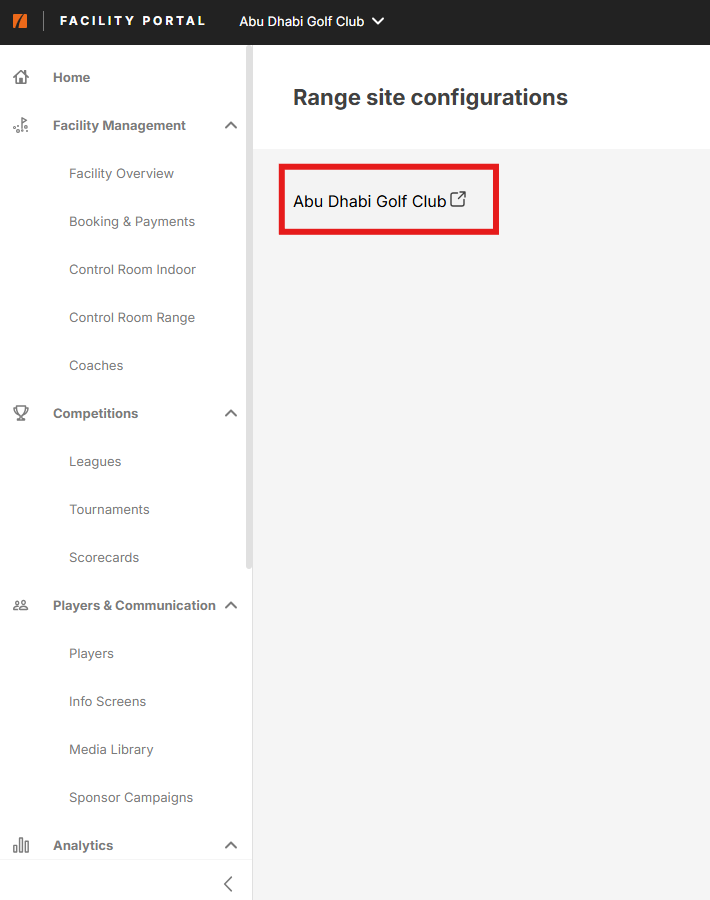

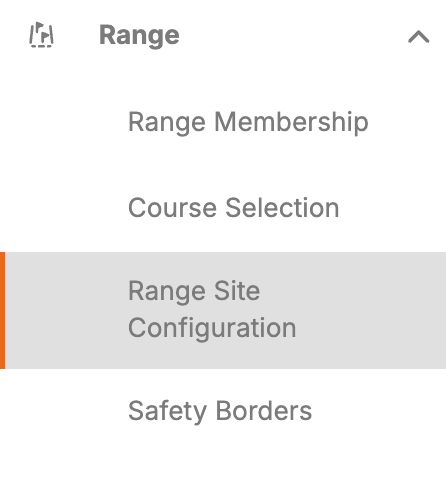

- Then click "Range Configuration" on left and proceed to click the circled link to open up the range config relay.
- Call Trackman Support for them to enable GPS RTK for all radars.
- Select "Manage Targets"
- Click on "New Target Layout" if adding targets for the first time or edit the existing target layout to add or delete targets.

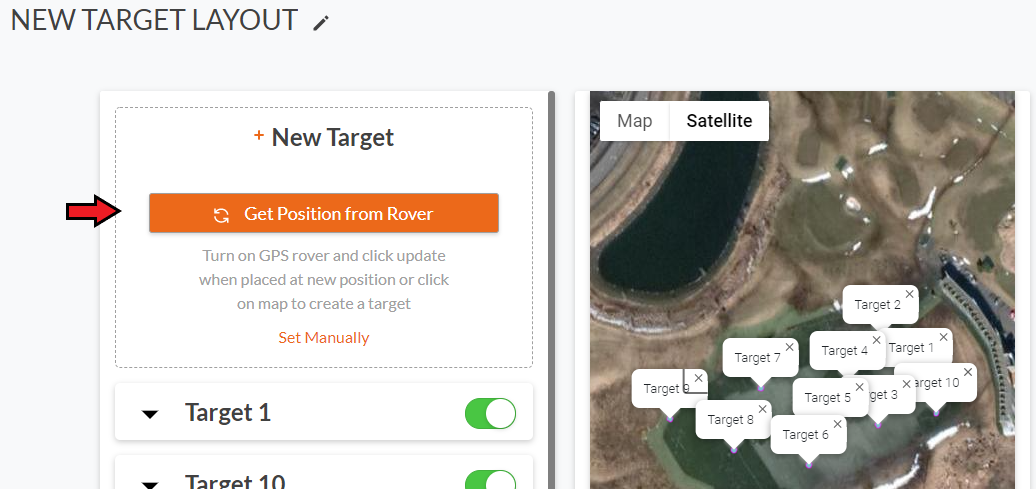

- Click "+New Target".
- Set the rover at the new target location.
- Click "Get Position from rover".
- Wait for Rover to confirm location (you will get a "RTK-Fix" (green) message next to "Set Manually").
- At this point make sure that the targets or new targets are showing on the map.
- Make sure to toggle on the target if you are mapping a new target.
- Finally, Trackman Support needs to disable GPS RTK again, otherwise the range won't function as intended.
